Drill EDM for many applications.
Always one step ahead with our drilling erosion.

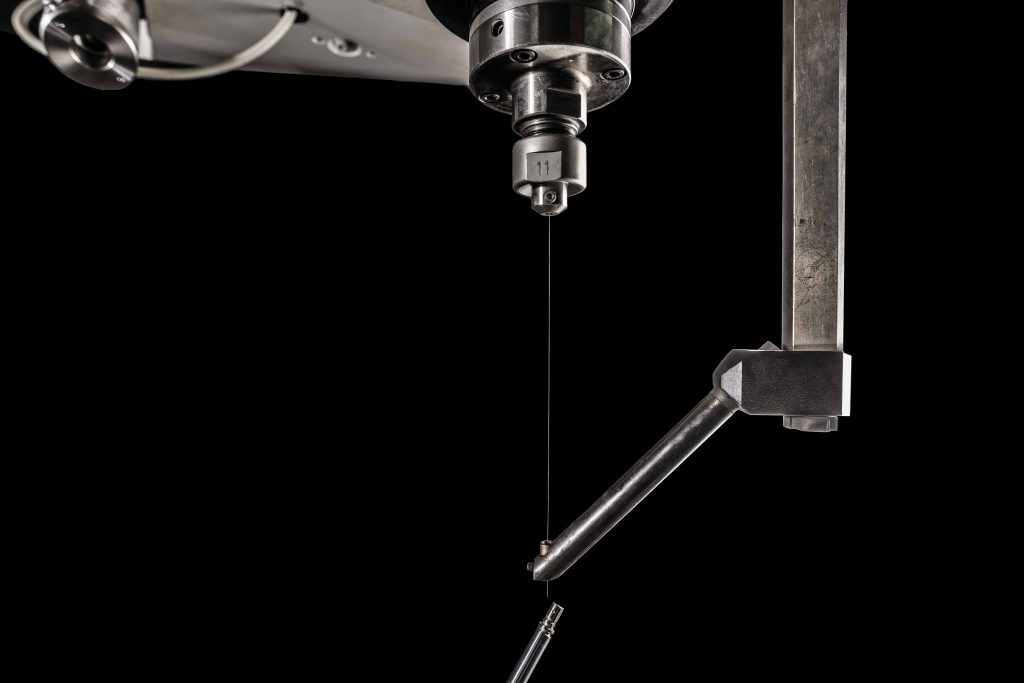

Drill erosion

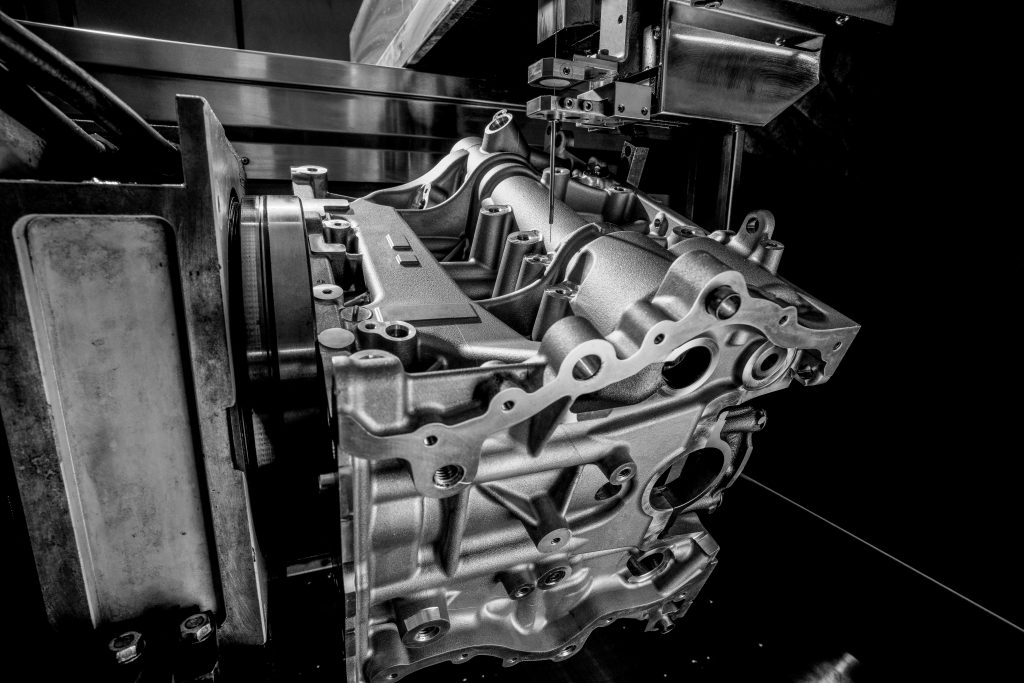

Serial parts with multiple hole pattern, individual holes at different angles or simple pilot drill holes for wire electro-discharge machining – apart from these applications, of course we also carry out numerous other applications using drilling erosion.
The hardness of the material plays no role even with the smallest holes – the workpieces only need to be electrically conductive. Of course, the prior art method of drilling erosion involves much more than just eroding broken screw taps. Nevertheless, of course, this application comes with the usual accuracy.
In addition, we have many years of experience in the production of precision bore holes for temperature measurement/telemetry.
Our range of services
- 5 machines
- CNC-controlled
- max. Container size 1150 x 700 mm
- Workpiece height 650 mm
- Workpiece weight up to 800 kg
- Drilling diameter Ø 0.12 mm to 10 mm (0.1 mm increments)
- Controlled rotary table
- 12-fold electrode changer
- special carbide treatment
